PAC Storage PS 3000 Series

SAN and NAS Storage with Cloud Gateway

PAC Storage PS 3000 Gen 3 enterprise SAN and NAS Data Storage forms the backbone of high-performance solutions for enterprises with its powerful performance, flexibility, and high expandability to efficiently boost overall productivity. The PS 3000 Gen 3 supports Intel’s New Ice Lake Xeon D advanced CPU platform. Our new 40, 60 and 90 Bay arrays now feature an NVMe drive cache option for extra read and write throughput. The PS 3000 offers the ability to run SAN and NAS along with Cloud Integration. The PS 3000 is perfect for those who want great performance, capacity, and a high port count–all at a competitive price.



RAID Available In:

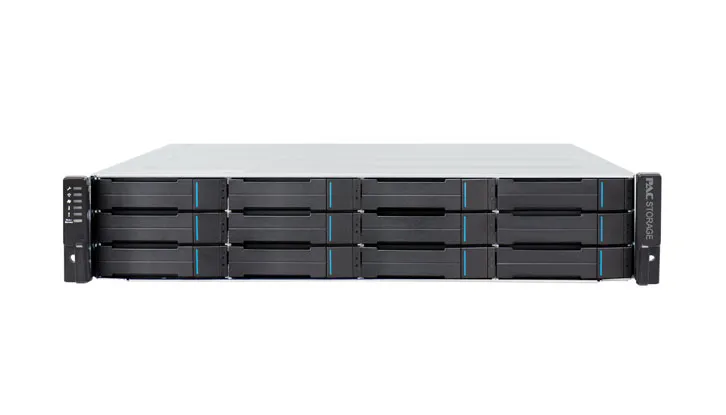

2U 12-Bay, 3.5″ Drives

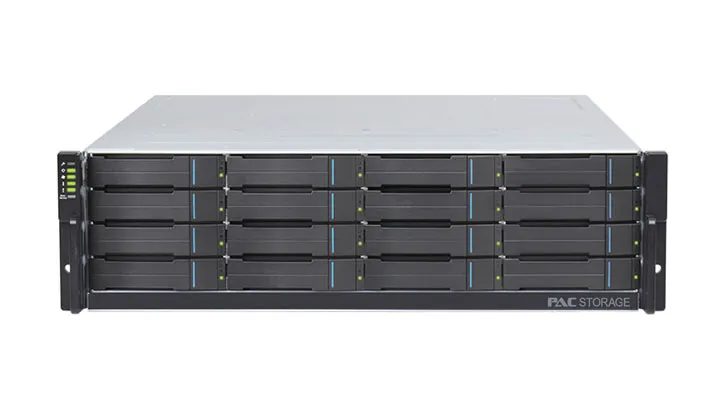

3U 16-Bay, 3.5″ Drives

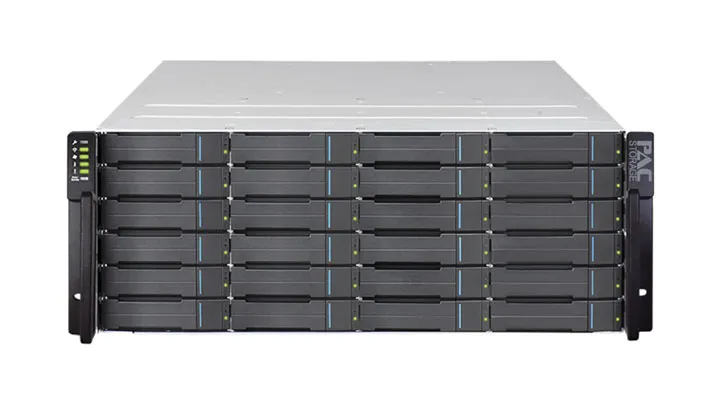

4U 24-Bay, 3.5″ Drives
4U 40-Bay, 3.5” Drives
4U 40+2 40 HDDs + 2 NVMe

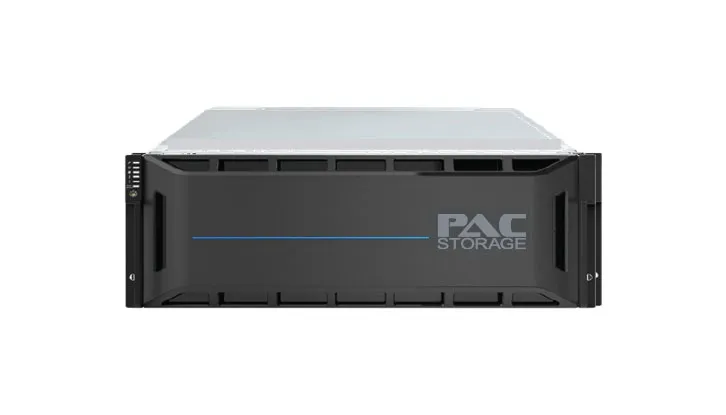

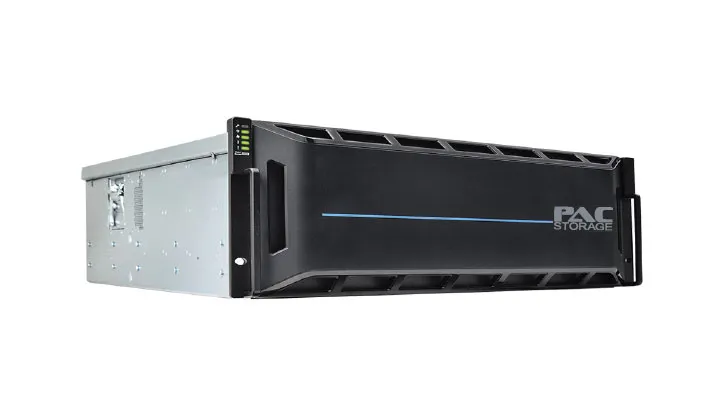

4U 60-Bay, 3.5” Drives
4U 58+2: 58 HDDs + 2 NVMe
4U 90-Bay, 3.5” Drives
4U 90+4: 90 HDDs + 4 NVMe



*Please note you can run 2.5” Drives in the 3.5” Carriers with Carrier Converters.
SCHEDULE A PRODUCT DEMONSTRATION

Product Advantages

HIGH PERFORMANCE:



  • Dual Active-Active Intel Ice Lake D (Xeon-D) Controllers: 4-Core
  • Throughput up to 16GB/s read and 12 GB/s write per system
  • Onboard 25GbE connectivity ports x4 + many more options for HBAs up to 100GbE
  • RAID System Features 12GB/s SAS Drive Integration
  • Supports up to 384GB Cache Memory
  • Up to 900K IOPS with SSD Drives
  • 40, 60 and 90 Bays Offer NVMe cache options for read and write cache
  • All 3000 systems offer SSD cache for reads



EXTREME SCALABILITY:



  • Scales up to 896 Drives: SAS, SSD, 10K, 7200NL
  • Up to 24TB Drives Available
  • Scalable to 21.5PB
  • Unlimited Cloud Scalability



UNIFIED STORAGE INTEGRATION:



  • Enterprise SAN and NAS Data Storage
  • Integrates file, block, object and cloud in one system
  • Cloud Integration for Private and Public Cloud
  • Supports Cloud Tiering, Cache and Cloud Back-Up
  • Intelligent data allocation algorithms allow for excellent utilization of client preferred cloud providers

ROBUST AVAILABILITY & RELIABILITY:



  • No Single Point of Failure: 99.999% Up Time
  • Redundant Dual controllers and non-single-point-of-failure hardware
  • Proprietary Non-Volatile Cache Memory
  • IDR support to ensure all hard drives are healthy preventing rebuild
  • Three Year Warranty included, expandable to 10 years.



SAFE DATA PROTECTION:



  • Intelligent Drive Recovery (IDR)
  • Snapshot
  • Local & Remote Replication, File-Level Rsync
  • Cloud Back-up



STRESS-FREE SIMPLICITY:



  • Easy to Deploy & Manage
  • Extreme Connectivity Options with up to 24 Host Ports:
    • 1,10,25,100 GbE and 8,16,32Gb FC
  • User-Friendly GUI Management Provides Single Control Center
  • Hosts Can Access the Same LUNs Simultaneously via both Controllers

Specifications

Form Factor: 2U 12-Bay, 3U 16-Bay, 4U 24-Bay, 4U 40-Bay, 4U 60-Bay, 4U 90-Bay
Controller: Dual-redundant
CPU: Intel Ice Lake-D (Xeon-D) 4 Core

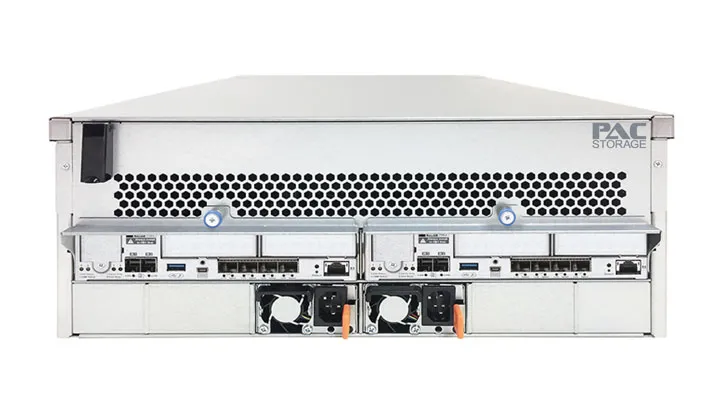

Onboard Host Ports:
2 x 25GbE ports Per Controller
HBA Host Ports(add-on per controller): 2 x 16Gb/s FC ports
2 x 32Gb/s FC ports
2 x 10GbE ports (SFP+)
2 x 10GbE ports (RJ-45)
4 x 25GbE (SFP28)
4 x 40GbE (QSFP+)
2 x 12Gb/s SAS ports
Max Number Host Ports: 24
Cache Memory: 16GB upgradeable to 512GB
Max SSD Cache Pool: 3.2TB
Cache Backup Techniques: Super capacitor+Flash module
Maximum Number of Drives: 896 (with expansion board)
Drive Connectivity: 12Gb/s SAS + 40 and 60 Bays offer Qty 2 NVMe U.2 drives, 90 Bays offer 4 NVMe drives
Drive Advanced Features: S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives: 2.5″ SAS SSDs and NVMe drives
2.5″ 10,000 RPM SAS drives, 2.5″ 15,000 RPM SAS drives
3.5″ 7,200 RPM Nearline SAS drives
Cloud Gateway: Available Integration with public and/or private cloud
Data Protection: Default software features include:
SED (Self-encrypting drives)
Thin-provisioning
Snapshot: 64 per volume/ 128 per system
Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
File-level remote replication (Rsync)
Optional software features require additional license:
SSD cache
Automated tiering (2/ 4 tiers)
Advanced snapshot: 256 per volume/ 4096 per system
Advanced block-level local replication: Replication pairs per source volume: 8 ; Replication pairs per system: 256
Advanced block-level remote replication: Replication pairs per source volume: 8 ; Replication pairs per system: 64
RAID Functionality: Global, dedicated or enclosure hot-spare
RAID levels supported : RAID 0, 1, (1+0), 3, 5, 6, 10, 30, 50, 60
Availability and Reliability: Redundant, hot-swappable hardware modules/ CacheSafe technology/ Multi-pathing support
Notification: Event notification methods including email and SNMP trap.
Management: Web-based management software and Module status LED indicators
Automated cache flush and caching mode operation
Storage Resource Management to analyze history records
OS Support: Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, CentOS, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer
Protocol Support:

File Level Protocol: CIFS/SMB, AFP, NFS, FTP, FXP, WebDAV

Block Level Protocol: FC, FCoE, iSCSI, InfiniBand, SAS

Object Protocol: RESTful API
